RecyclerView源码分析 ​

更新: 1/31/2026 字数: 0 字 时长: 0 分钟

绘制流程 ​

RecyclerView 继承的是 ViewGroup，所以绘制过程还是 onMeasure，onLayout，onDraw 这三个步骤。

onMeasure ​

看一下源码:

java
@Override
protected void onMeasure(int widthSpec, int heightSpec) {
    if (mLayout == null) {
        // 情况1
    }
    if (mLayout.isAutoMeasureEnabled()) {
        // 情况2
    } else {
        // 情况3
    }
}

这里的 mLayout 为 LayoutManager 对象，负责 rv 里面 item 的布局和测量。分为三种情况:

  1. mLayout 为 null,这时 rv 是不能显示任何数据的。
  2. mLayout 不为 null，但开启了自动测量
  3. mLayout 不为 null，没开启自动测量

mLayout 为 null 的情况 ​

看一下代码:

java
if (mLayout == null) {
    defaultOnMeasure(widthSpec, heightSpec);
    return;
}

可以看到进入了一个 defaultOnMeasure的方法，我们看一下:

java
void defaultOnMeasure(int widthSpec, int heightSpec) {
    final int width = LayoutManager.chooseSize(widthSpec,
                                               getPaddingLeft() + getPaddingRight(),
                                               ViewCompat.getMinimumWidth(this));
    final int height = LayoutManager.chooseSize(heightSpec,
                                                getPaddingTop() + getPaddingBottom(),
                                                ViewCompat.getMinimumHeight(this));

    setMeasuredDimension(width, height);
}

调用了 chooseSize()方法获取宽高，然后调用 setMeasureDimension()设置宽高:

java
public static int chooseSize(int spec, int desired, int min) {
    final int mode = View.MeasureSpec.getMode(spec);
    final int size = View.MeasureSpec.getSize(spec);
    switch (mode) {
        case View.MeasureSpec.EXACTLY:
            return size;
        case View.MeasureSpec.AT_MOST:
            return Math.min(size, Math.max(desired, min));
        case View.MeasureSpec.UNSPECIFIED:
        default:
            return Math.max(desired, min);
    }
}

这里就是通过不同的测量模式选取不同的值。

mLayout 开启了自动测量 ​

java
if (mLayout.isAutoMeasureEnabled()) {
    // 这里获取了测量模式
    final int widthMode = MeasureSpec.getMode(widthSpec);
    final int heightMode = MeasureSpec.getMode(heightSpec);

    // 进入LayoutManager的测量流程
    mLayout.onMeasure(mRecycler, mState, widthSpec, heightSpec);

    // 判断是否是精确模式，确定是否需要跳过测量
    final boolean measureSpecModeIsExactly =
    widthMode == MeasureSpec.EXACTLY && heightMode == MeasureSpec.EXACTLY;

    // 如果可以跳过测量/adapter为null，则直接返回
    if (measureSpecModeIsExactly || mAdapter == null) {
        return;
    }

    if (mState.mLayoutStep == State.STEP_START) {
        dispatchLayoutStep1();
    }

    mLayout.setMeasureSpecs(widthSpec, heightSpec);
    mState.mIsMeasuring = true;
    dispatchLayoutStep2();

    mLayout.setMeasuredDimensionFromChildren(widthSpec, heightSpec);

    if (mLayout.shouldMeasureTwice()) {
        mLayout.setMeasureSpecs(
            MeasureSpec.makeMeasureSpec(getMeasuredWidth(), MeasureSpec.EXACTLY),
            MeasureSpec.makeMeasureSpec(getMeasuredHeight(), MeasureSpec.EXACTLY));
        mState.mIsMeasuring = true;
        dispatchLayoutStep2();

        mLayout.setMeasuredDimensionFromChildren(widthSpec, heightSpec);
    }
}

这里 LayoutManager 的 onMeasure 方法并没有覆写，而是直接调用的 RecyclerView 的 defaultOnMeasure 方法。

然后会判断当前的状态mState.mLayoutStep，这是 RecyclerView.State 对象，有三种状态，分别对应三种不同的 dispatchLayoutStep 方法（还有一个 dispatchLayoutStep3）：

State.mLayoutStepdispatchLayoutStep含义
STEP_STARTdispatchLayoutStep1()这是默认值，执行完 dispatchLayoutStep1()后会变成 STEP_LAYOUT
STEP_LAYOUTdispatchLayoutStep2()调用 dispatchLayoutStep2 对子 View layout完后变成STEP_ANIMATION
STEP_ANIMATIONdispatchLayoutStep3()执行动画阶段，调用dispatchLayoutStep3()会变成 STEP_START
dispatchLayoutStep1() ​
java
private void dispatchLayoutStep1() {
    ...
    processAdapterUpdatesAndSetAnimationFlags();
    ...

    if (mState.mRunSimpleAnimations) {
        // Step 0：找出所有未移除的ItemView，进行预布局
    }
    if (mState.mRunPredictiveAnimations) {
       // Step 1:预布局
    } else {
        clearOldPositions();
    }
    onExitLayoutOrScroll();
    stopInterceptRequestLayout(false);
    mState.mLayoutStep = State.STEP_LAYOUT; // 这里改变了RV的绘制状态
}

这个方法主要是根据 mState 的 mRunSimpleAnimations 和 mRunPredictiveAnimations 的值进行不同的处理，而processAdapterUpdatesAndSetAnimationFlags()就是给这些值进行了初始化。

java
private void processAdapterUpdatesAndSetAnimationFlags() {
    ...
    // 在这里对值进行了计算
    mState.mRunSimpleAnimations = mFirstLayoutComplete
    && mItemAnimator != null
    && (mDataSetHasChangedAfterLayout
        || animationTypeSupported
        || mLayout.mRequestedSimpleAnimations)
    && (!mDataSetHasChangedAfterLayout
        || mAdapter.hasStableIds());
    mState.mRunPredictiveAnimations = mState.mRunSimpleAnimations
    && animationTypeSupported
    && !mDataSetHasChangedAfterLayout
    && predictiveItemAnimationsEnabled();
}
dispatchLayoutStep2() ​

onMeasure()流程中，执行完 dispatchLayoutStep1()方法后就会执行 dispatchLayoutStep2()：

java
private void dispatchLayoutStep2() {
    startInterceptRequestLayout();
    onEnterLayoutOrScroll();
    mState.assertLayoutStep(State.STEP_LAYOUT | State.STEP_ANIMATIONS);
    mAdapterHelper.consumeUpdatesInOnePass();
    mState.mItemCount = mAdapter.getItemCount();
    mState.mDeletedInvisibleItemCountSincePreviousLayout = 0;

    // Step 2: Run layout
    mState.mInPreLayout = false;
    mLayout.onLayoutChildren(mRecycler, mState);

    mState.mStructureChanged = false;
    mPendingSavedState = null;

    // onLayoutChildren may have caused client code to disable item animations; re-check
    mState.mRunSimpleAnimations = mState.mRunSimpleAnimations && mItemAnimator != null;
    mState.mLayoutStep = State.STEP_ANIMATIONS;
    onExitLayoutOrScroll();
    stopInterceptRequestLayout(false);
}

这里主要就是对 rv 的子 View 进行 layout，onLayoutChildren 又由 LayoutManager 的子类实现。

LayoutManager 没有开启自动测量时 ​

java
else {
    if (mHasFixedSize) {
        mLayout.onMeasure(mRecycler, mState, widthSpec, heightSpec);
        return;
    }
    // custom onMeasure
    if (mAdapterUpdateDuringMeasure) {
        startInterceptRequestLayout();
        onEnterLayoutOrScroll();
        processAdapterUpdatesAndSetAnimationFlags();
        onExitLayoutOrScroll();

        if (mState.mRunPredictiveAnimations) {
            mState.mInPreLayout = true;
        } else {
            // consume remaining updates to provide a consistent state with the layout pass.
            mAdapterHelper.consumeUpdatesInOnePass();
            mState.mInPreLayout = false;
        }
        mAdapterUpdateDuringMeasure = false;
        stopInterceptRequestLayout(false);
    } else if (mState.mRunPredictiveAnimations) {
        setMeasuredDimension(getMeasuredWidth(), getMeasuredHeight());
        return;
    }

    if (mAdapter != null) {
        mState.mItemCount = mAdapter.getItemCount();
    } else {
        mState.mItemCount = 0;
    }
    startInterceptRequestLayout();
    mLayout.onMeasure(mRecycler, mState, widthSpec, heightSpec);
    stopInterceptRequestLayout(false);
    mState.mInPreLayout = false; // clear
}

如果 mHasFixedSize 为 true(可以通过 setHasFixedSize 方法设置),则直接调用 LayoutManager 的 onMeasure 方法进行测量,如果为 false，则先判断mAdapterUpdateDuringMeasure 是否有数据更新，如果有则先进行更新再调用 LayoutManager 的 onMeasure 方法。

onLayout ​

measure 流程完后就是 layout，看一下 layout 方法:

java
@Override
protected void onLayout(boolean changed, int l, int t, int r, int b) {
    TraceCompat.beginSection(TRACE_ON_LAYOUT_TAG);
    dispatchLayout();
    TraceCompat.endSection();
    mFirstLayoutComplete = true;
}

很简单，重要的是在 dispatchLayout 方法里面:

java
void dispatchLayout() {
    if (mAdapter == null) {
        Log.e(TAG, "No adapter attached; skipping layout");
        // leave the state in START
        return;
    }
    if (mLayout == null) {
        Log.e(TAG, "No layout manager attached; skipping layout");
        // leave the state in START
        return;
    }
    mState.mIsMeasuring = false;
    if (mState.mLayoutStep == State.STEP_START) {
        dispatchLayoutStep1();
        mLayout.setExactMeasureSpecsFrom(this);
        dispatchLayoutStep2();
    } else if (mAdapterHelper.hasUpdates() || mLayout.getWidth() != getWidth()
               || mLayout.getHeight() != getHeight()) {
        // First 2 steps are done in onMeasure but looks like we have to run again due to
        // changed size.
        mLayout.setExactMeasureSpecsFrom(this);
        dispatchLayoutStep2();
    } else {
        // always make sure we sync them (to ensure mode is exact)
        mLayout.setExactMeasureSpecsFrom(this);
    }
    dispatchLayoutStep3();
}

如果 mAdapter 或者 mLayout 为 null，则直接返回，因此如果没有给 rv 设置 LayoutManager，那么 rv 是不会加载数据的。这个方法里面保证了 layout 流程中所必需的三个流程 dispatchLayout1/2/3。看一下 dispatchLayout3:

java
private void dispatchLayoutStep3() {
    ...
    mState.mLayoutStep = State.STEP_START;
    ...
    }

这里就是将 state 状态置为之前的值，确保第二次 layout 时也能执行三个方法，剩下的则是跟 ItemAnimator 有关。

draw 流程 ​

java
@Override
public void draw(Canvas c) {
super.draw(c);

final int count = mItemDecorations.size();
for (int i = 0; i < count; i++) {
	mItemDecorations.get(i).onDrawOver(c, this, mState);
}
// TODO If padding is not 0 and clipChildrenToPadding is false, to draw glows properly, we
// need find children closest to edges. Not sure if it is worth the effort.
boolean needsInvalidate = false;
if (mLeftGlow != null && !mLeftGlow.isFinished()) {
	final int restore = c.save();
	final int padding = mClipToPadding ? getPaddingBottom() : 0;
	c.rotate(270);
	c.translate(-getHeight() + padding, 0);
	needsInvalidate = mLeftGlow != null && mLeftGlow.draw(c);
	c.restoreToCount(restore);
}
if (mTopGlow != null && !mTopGlow.isFinished()) {
	final int restore = c.save();
	if (mClipToPadding) {
		c.translate(getPaddingLeft(), getPaddingTop());
	}
	needsInvalidate |= mTopGlow != null && mTopGlow.draw(c);
	c.restoreToCount(restore);
}
if (mRightGlow != null && !mRightGlow.isFinished()) {
	final int restore = c.save();
	final int width = getWidth();
	final int padding = mClipToPadding ? getPaddingTop() : 0;
	c.rotate(90);
	c.translate(-padding, -width);
	needsInvalidate |= mRightGlow != null && mRightGlow.draw(c);
	c.restoreToCount(restore);
}
if (mBottomGlow != null && !mBottomGlow.isFinished()) {
	final int restore = c.save();
	c.rotate(180);
	if (mClipToPadding) {
		c.translate(-getWidth() + getPaddingRight(), -getHeight() + getPaddingBottom());
	} else {
		c.translate(-getWidth(), -getHeight());
	}
	needsInvalidate |= mBottomGlow != null && mBottomGlow.draw(c);
	c.restoreToCount(restore);
}

// If some views are animating, ItemDecorators are likely to move/change with them.
// Invalidate RecyclerView to re-draw decorators. This is still efficient because children's
// display lists are not invalidated.
if (!needsInvalidate && mItemAnimator != null && mItemDecorations.size() > 0
	&& mItemAnimator.isRunning()) {
	needsInvalidate = true;
}

if (needsInvalidate) {
	ViewCompat.postInvalidateOnAnimation(this);
}
}
public void draw(Canvas c) {
	super.draw(c);

	final int count = mItemDecorations.size();
	for (int i = 0; i < count; i++) {
		mItemDecorations.get(i).onDrawOver(c, this, mState);
	}
	// TODO If padding is not 0 and clipChildrenToPadding is false, to draw glows properly, we
	// need find children closest to edges. Not sure if it is worth the effort.
	...
}

大概就是调用 super.draw(),然后将子 view 的绘制分发给 View 类，再回调 rv 的 onDraw 方法:

java
@Override
public void onDraw(Canvas c) {
    super.onDraw(c);

    final int count = mItemDecorations.size();
    for (int i = 0; i < count; i++) {
        mItemDecorations.get(i).onDraw(c, this, mState);
    }
}

这里是将分割线的绘制分发给 ItemDecoration 的 onDraw 方法，又调用 ItemDecoration 的 onDrawOver 方法，绘制一些装饰。如果RecyclerView调用了setClipToPadding，会实现一种特殊的滑动效果--每个ItemView可以滑动到padding区域。

推荐博客:

教你玩转 Android RecyclerView：深入解析 RecyclerView.ItemDecoration类（含实例讲解）_android recyclerview.itemdecoration-CSDN博客

LinearLayoutManager.onLayoutChildren 方法 ​

java
@Override
public void onLayoutChildren(RecyclerView.Recycler recycler, RecyclerView.State state) {
	// layout algorithm:
	// 1) by checking children and other variables, find an anchor coordinate and an anchor
	//  item position.
	// 2) fill towards start, stacking from bottom
	// 3) fill towards end, stacking from top
	// 4) scroll to fulfill requirements like stack from bottom.
	// create layout state
	if (DEBUG) {
		Log.d(TAG, "is pre layout:" + state.isPreLayout());
	}
	if (mPendingSavedState != null || mPendingScrollPosition != RecyclerView.NO_POSITION) {
		if (state.getItemCount() == 0) {
			removeAndRecycleAllViews(recycler);
			return;
		}
	}
	if (mPendingSavedState != null && mPendingSavedState.hasValidAnchor()) {
		mPendingScrollPosition = mPendingSavedState.mAnchorPosition;
	}

	ensureLayoutState();
	mLayoutState.mRecycle = false;
	// resolve layout direction
	resolveShouldLayoutReverse();

	final View focused = getFocusedChild();
	if (!mAnchorInfo.mValid || mPendingScrollPosition != RecyclerView.NO_POSITION
		|| mPendingSavedState != null) {
		mAnchorInfo.reset();
		mAnchorInfo.mLayoutFromEnd = mShouldReverseLayout ^ mStackFromEnd;
		// calculate anchor position and coordinate
		updateAnchorInfoForLayout(recycler, state, mAnchorInfo);
		mAnchorInfo.mValid = true;
	} else if (focused != null && (mOrientationHelper.getDecoratedStart(focused)
								   >= mOrientationHelper.getEndAfterPadding()
								   || mOrientationHelper.getDecoratedEnd(focused)
								   <= mOrientationHelper.getStartAfterPadding())) {
		mAnchorInfo.assignFromViewAndKeepVisibleRect(focused, getPosition(focused));
	}
	if (DEBUG) {
		Log.d(TAG, "Anchor info:" + mAnchorInfo);
	}
	mLayoutState.mLayoutDirection = mLayoutState.mLastScrollDelta >= 0
	? LayoutState.LAYOUT_END : LayoutState.LAYOUT_START;
	mReusableIntPair[0] = 0;
	mReusableIntPair[1] = 0;
	calculateExtraLayoutSpace(state, mReusableIntPair);
	int extraForStart = Math.max(0, mReusableIntPair[0])
	+ mOrientationHelper.getStartAfterPadding();
	int extraForEnd = Math.max(0, mReusableIntPair[1])
	+ mOrientationHelper.getEndPadding();
	if (state.isPreLayout() && mPendingScrollPosition != RecyclerView.NO_POSITION
		&& mPendingScrollPositionOffset != INVALID_OFFSET) {
		final View existing = findViewByPosition(mPendingScrollPosition);
		if (existing != null) {
			final int current;
			final int upcomingOffset;
			if (mShouldReverseLayout) {
				current = mOrientationHelper.getEndAfterPadding()
				- mOrientationHelper.getDecoratedEnd(existing);
				upcomingOffset = current - mPendingScrollPositionOffset;
			} else {
				current = mOrientationHelper.getDecoratedStart(existing)
				- mOrientationHelper.getStartAfterPadding();
				upcomingOffset = mPendingScrollPositionOffset - current;
			}
			if (upcomingOffset > 0) {
				extraForStart += upcomingOffset;
			} else {
				extraForEnd -= upcomingOffset;
			}
		}
	}
	int startOffset;
	int endOffset;
	final int firstLayoutDirection;
	if (mAnchorInfo.mLayoutFromEnd) {
		firstLayoutDirection = mShouldReverseLayout ? LayoutState.ITEM_DIRECTION_TAIL
		: LayoutState.ITEM_DIRECTION_HEAD;
	} else {
		firstLayoutDirection = mShouldReverseLayout ? LayoutState.ITEM_DIRECTION_HEAD
		: LayoutState.ITEM_DIRECTION_TAIL;
	}

	onAnchorReady(recycler, state, mAnchorInfo, firstLayoutDirection);
	detachAndScrapAttachedViews(recycler);
	mLayoutState.mInfinite = resolveIsInfinite();
	mLayoutState.mIsPreLayout = state.isPreLayout();
	mLayoutState.mNoRecycleSpace = 0;
	if (mAnchorInfo.mLayoutFromEnd) {
		updateLayoutStateToFillStart(mAnchorInfo);
		mLayoutState.mExtraFillSpace = extraForStart;
		fill(recycler, mLayoutState, state, false);
		startOffset = mLayoutState.mOffset;
		final int firstElement = mLayoutState.mCurrentPosition;
		if (mLayoutState.mAvailable > 0) {
			extraForEnd += mLayoutState.mAvailable;
		}
		// fill towards end
		updateLayoutStateToFillEnd(mAnchorInfo);
		mLayoutState.mExtraFillSpace = extraForEnd;
		mLayoutState.mCurrentPosition += mLayoutState.mItemDirection;
		fill(recycler, mLayoutState, state, false);
		endOffset = mLayoutState.mOffset;

		if (mLayoutState.mAvailable > 0) {
			// end could not consume all. add more items towards start
			extraForStart = mLayoutState.mAvailable;
			updateLayoutStateToFillStart(firstElement, startOffset);
			mLayoutState.mExtraFillSpace = extraForStart;
			fill(recycler, mLayoutState, state, false);
			startOffset = mLayoutState.mOffset;
		}
	} else {
		// fill towards end
		updateLayoutStateToFillEnd(mAnchorInfo);
		mLayoutState.mExtraFillSpace = extraForEnd;
		fill(recycler, mLayoutState, state, false);
		endOffset = mLayoutState.mOffset;
		final int lastElement = mLayoutState.mCurrentPosition;
		if (mLayoutState.mAvailable > 0) {
			extraForStart += mLayoutState.mAvailable;
		}
		// fill towards start
		updateLayoutStateToFillStart(mAnchorInfo);
		mLayoutState.mExtraFillSpace = extraForStart;
		mLayoutState.mCurrentPosition += mLayoutState.mItemDirection;
		fill(recycler, mLayoutState, state, false);
		startOffset = mLayoutState.mOffset;

		if (mLayoutState.mAvailable > 0) {
			extraForEnd = mLayoutState.mAvailable;
			// start could not consume all it should. add more items towards end
			updateLayoutStateToFillEnd(lastElement, endOffset);
			mLayoutState.mExtraFillSpace = extraForEnd;
			fill(recycler, mLayoutState, state, false);
			endOffset = mLayoutState.mOffset;
		}
	}
	if (getChildCount() > 0) {
		if (mShouldReverseLayout ^ mStackFromEnd) {
			int fixOffset = fixLayoutEndGap(endOffset, recycler, state, true);
			startOffset += fixOffset;
			endOffset += fixOffset;
			fixOffset = fixLayoutStartGap(startOffset, recycler, state, false);
			startOffset += fixOffset;
			endOffset += fixOffset;
		} else {
			int fixOffset = fixLayoutStartGap(startOffset, recycler, state, true);
			startOffset += fixOffset;
			endOffset += fixOffset;
			fixOffset = fixLayoutEndGap(endOffset, recycler, state, false);
			startOffset += fixOffset;
			endOffset += fixOffset;
		}
	}
	layoutForPredictiveAnimations(recycler, state, startOffset, endOffset);
	if (!state.isPreLayout()) {
		mOrientationHelper.onLayoutComplete();
	} else {
		mAnchorInfo.reset();
	}
	mLastStackFromEnd = mStackFromEnd;
	if (DEBUG) {
		validateChildOrder();
	}
}

主要的几个步骤是:

  1. 确定锚点信息，找到一个锚点坐标与锚点。
  2. 根据锚点信息，进行填充。
  3. 如果还有剩余，则再填充一次。

确定锚点信息 ​

resolveShouldLayoutReverse()方法判断了当前是否需要倒着绘制:

java
private void resolveShouldLayoutReverse() {
	// A == B is the same result, but we rather keep it readable
	if (mOrientation == VERTICAL || !isLayoutRTL()) {
		mShouldReverseLayout = mReverseLayout;
	} else {
		mShouldReverseLayout = !mReverseLayout;
	}
}

默认是 false，可以通过 setReverseLayout()方法改变值，然后就是调用 updateAnchorInfoForLayout(recycler, state, mAnchorInfo)方法更新锚点。mAnchorInfo 就是一个 AnchorInfo 类的锚点对象:

java
static class AnchorInfo {
    OrientationHelper mOrientationHelper;
    int mPosition;
    int mCoordinate;
    boolean mLayoutFromEnd;
    boolean mValid;
}

AnchorInfo 有四个变量，其中 mValid 的默认值为 false，一次测量后变为 true，onLayout 测量完成后会调用 reset()方法又变为 false。mLayoutFromEnd 有如下计算方法:

java
mLayoutFromEnd = mShouldReverseLayout ^ mStackFromEnd

这两个参数默认都是 false ，所以如果不调用 setStackFromEnd，都是 false。

然后又调用了 updateAnchorInfoForLayout()方法，用来更新锚点信息:

java
private void updateAnchorInfoForLayout(RecyclerView.Recycler recycler, RecyclerView.State state,
									   AnchorInfo anchorInfo) {
	// 第一种计算方法
	if (updateAnchorFromPendingData(state, anchorInfo)) {
		if (DEBUG) {
			Log.d(TAG, "updated anchor info from pending information");
		}
		return;
	}

	// 第二种计算方法
	if (updateAnchorFromChildren(recycler, state, anchorInfo)) {
		if (DEBUG) {
			Log.d(TAG, "updated anchor info from existing children");
		}
		return;
	}
	if (DEBUG) {
		Log.d(TAG, "deciding anchor info for fresh state");
	}
	// 第三种计算方法
	anchorInfo.assignCoordinateFromPadding();
	anchorInfo.mPosition = mStackFromEnd ? state.getItemCount() - 1 : 0;
}
  1. 第一种计算方法：如果存在未决的滚动位置或保存的状态，从该数据更新锚点信息并返回true
  2. 第二种计算方法：根据子View来更新锚点信息，如果一个子View有锚点，则根据其来计算锚点信息；如有一个子View没有锚点，则根据布局方向选取第一个View或最后一个View
  3. 第三种计算方法：前两种都未采用，则采取默认的第三种计算方式

回收子 View ​

``****属于RecyclerView缓存机制的部分，这里后面再说。

子 View 填充 ​

第三步是子 View 的内容的填充了，首先是判断是否逆向填充，如果是正向填充就先向下填充，再向上填充。逆向的话则相反，但都会调用两次 fill(),如果还有空余则还会调用一次 fill 进行填充。

缓存机制 ​

RecyclerView 的核心就是其缓存机制，核心实现类是 Recycler 类,是 RecyclerView 的 View 管理者，其功能包括生成新 View，复用旧View，回收View，重新绑定View。下面是一些变量:

java
public final class Recycler {
	final ArrayList<ViewHolder> mAttachedScrap = new ArrayList<>();
	ArrayList<ViewHolder> mChangedScrap = null;

	final ArrayList<ViewHolder> mCachedViews = new ArrayList<ViewHolder>();

	private final List<ViewHolder>
	mUnmodifiableAttachedScrap = Collections.unmodifiableList(mAttachedScrap);

	private int mRequestedCacheMax = DEFAULT_CACHE_SIZE;
	int mViewCacheMax = DEFAULT_CACHE_SIZE;

	RecycledViewPool mRecyclerPool;

	private ViewCacheExtension mViewCacheExtension;

	static final int DEFAULT_CACHE_SIZE = 2;
}

下面以 LinearLayoutManager 为例进行分析。

初步分析 ​

RV 的 fill 方法中开始于 LayoutState.next 方法，我们就从这个方法开始:

java
View next(RecyclerView.Recycler recycler) {
	if (mScrapList != null) {
		return nextViewFromScrapList();
	}
	final View view = recycler.getViewForPosition(mCurrentPosition);
	mCurrentPosition += mItemDirection;
	return view;
}

这里除了 mScrapList 之外，还有缓存 mScrapList，这个被 LinearLayoutManager 持有，其声明如下:

java
List<RecyclerView.ViewHolder> mScrapList = null;

这是一个 ViewHolder 类型的 List，当 LinearLayoutManager 需要返回特定视图时就会设置这个参数，这种情况 LayoutState 只会从这里面取出视图，如果没有则返回 null。

接下俩看看 Recycler.getViewForPosition 方法：

java
@NonNull
public View getViewForPosition(int position) {
	return getViewForPosition(position, false);
}

View getViewForPosition(int position, boolean dryRun) {
	return tryGetViewHolderForPositionByDeadline(position, dryRun, FOREVER_NS).itemView;
}

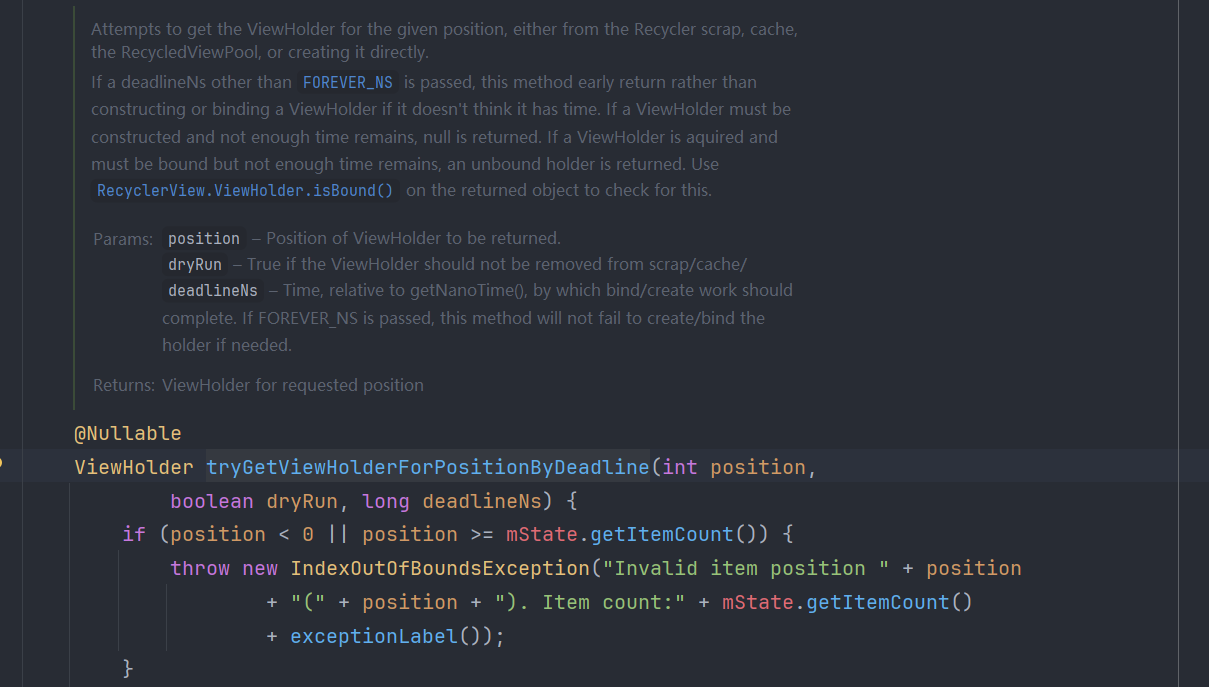

继续跟进这个方法，可以看到注释:

这里的注释表明了是从 Recycler 中的 scrap,cache,RecycledViewPool 中获取 ViewHolder，如果都获取不到则创建一个新的 ViewHolder。我们接下来就看一下这个代码:

java
ViewHolder tryGetViewHolderForPositionByDeadline(int position,
												 boolean dryRun, long deadlineNs) {
	if (position < 0 || position >= mState.getItemCount()) {
		throw new IndexOutOfBoundsException("Invalid item position " + position
											+ "(" + position + "). Item count:" + mState.getItemCount()
											+ exceptionLabel());
	}
	boolean fromScrapOrHiddenOrCache = false;
	ViewHolder holder = null;
	// 0) If there is a changed scrap, try to find from there
	if (mState.isPreLayout()) {
		holder = getChangedScrapViewForPosition(position);
		fromScrapOrHiddenOrCache = holder != null;
	}

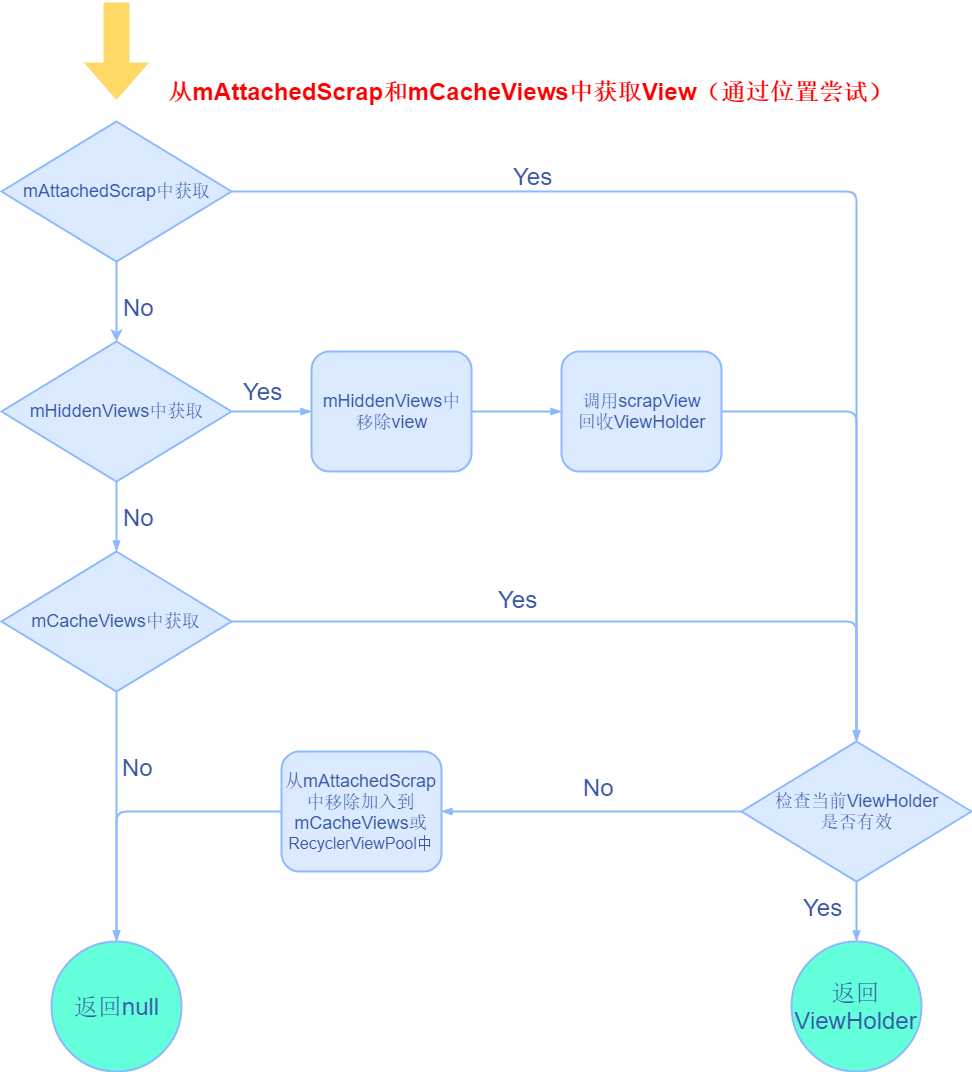

	// 1) Find by position from scrap/hidden list/cache
	if (holder == null) {
		holder = getScrapOrHiddenOrCachedHolderForPosition(position, dryRun);
		if (holder != null) {
			if (!validateViewHolderForOffsetPosition(holder)) {
				// recycle holder (and unscrap if relevant) since it can't be used
				if (!dryRun) {
					// we would like to recycle this but need to make sure it is not used by
					// animation logic etc.
					holder.addFlags(ViewHolder.FLAG_INVALID);
					if (holder.isScrap()) {
						removeDetachedView(holder.itemView, false);
						holder.unScrap();
					} else if (holder.wasReturnedFromScrap()) {
						holder.clearReturnedFromScrapFlag();
					}
					recycleViewHolderInternal(holder);
				}
				holder = null;
			} else {
				fromScrapOrHiddenOrCache = true;
			}
		}
	}
	if (holder == null) {
		final int offsetPosition = mAdapterHelper.findPositionOffset(position);
		if (offsetPosition < 0 || offsetPosition >= mAdapter.getItemCount()) {
			throw new IndexOutOfBoundsException("Inconsistency detected. Invalid item "
												+ "position " + position + "(offset:" + offsetPosition + ")."
												+ "state:" + mState.getItemCount() + exceptionLabel());
		}

		final int type = mAdapter.getItemViewType(offsetPosition);

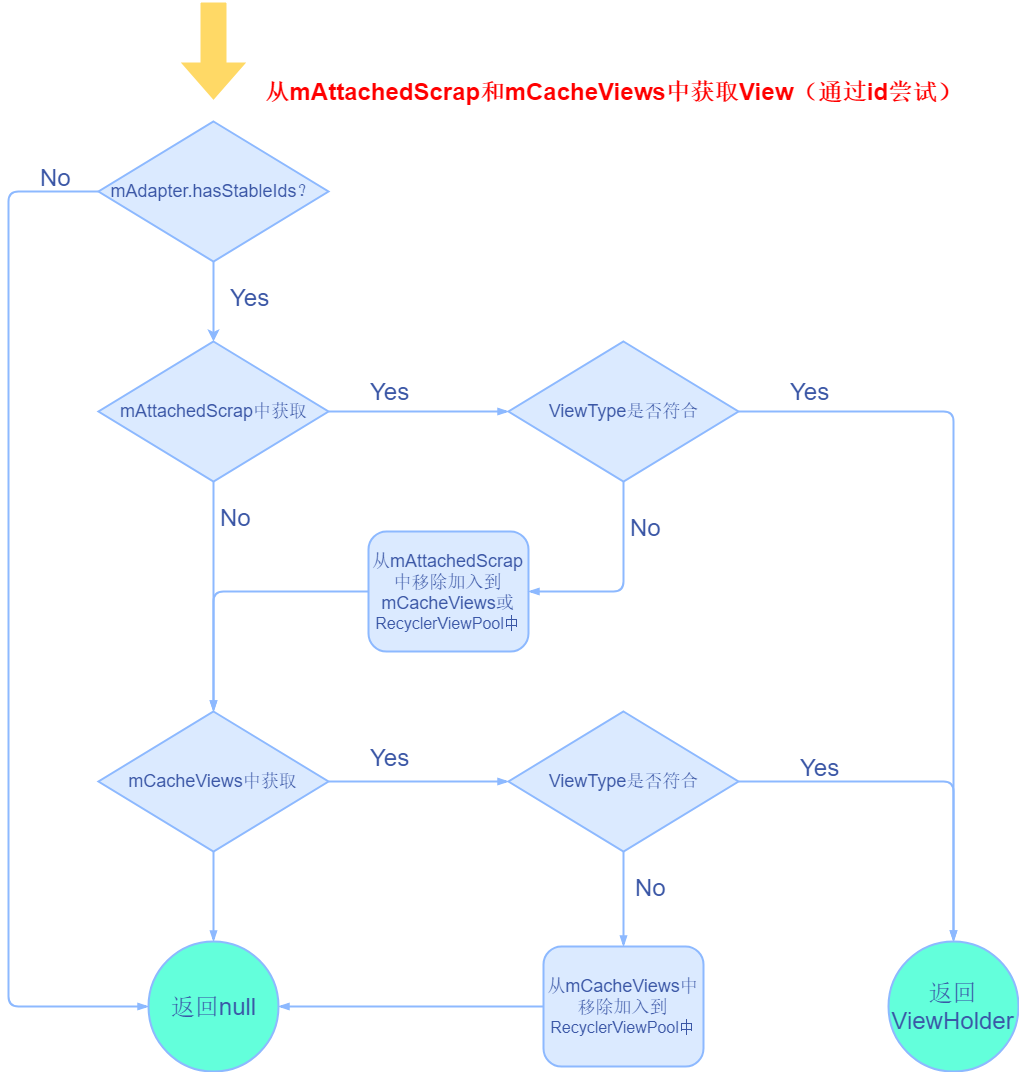

		// 2) Find from scrap/cache via stable ids, if exists
		if (mAdapter.hasStableIds()) {
			holder = getScrapOrCachedViewForId(mAdapter.getItemId(offsetPosition),
											   type, dryRun);
			if (holder != null) {
				// update position
				holder.mPosition = offsetPosition;
				fromScrapOrHiddenOrCache = true;
			}
		}
		if (holder == null && mViewCacheExtension != null) {
			// We are NOT sending the offsetPosition because LayoutManager does not
			// know it.
			final View view = mViewCacheExtension
			.getViewForPositionAndType(this, position, type);
			if (view != null) {
				holder = getChildViewHolder(view);
				if (holder == null) {
					throw new IllegalArgumentException("getViewForPositionAndType returned"
													   + " a view which does not have a ViewHolder"
													   + exceptionLabel());
				} else if (holder.shouldIgnore()) {
					throw new IllegalArgumentException("getViewForPositionAndType returned"
													   + " a view that is ignored. You must call stopIgnoring before"
													   + " returning this view." + exceptionLabel());
				}
			}
		}
		if (holder == null) { // fallback to pool
			if (DEBUG) {
				Log.d(TAG, "tryGetViewHolderForPositionByDeadline("
					  + position + ") fetching from shared pool");
			}
			holder = getRecycledViewPool().getRecycledView(type);
			if (holder != null) {
				holder.resetInternal();
				if (FORCE_INVALIDATE_DISPLAY_LIST) {
					invalidateDisplayListInt(holder);
				}
			}
		}
		if (holder == null) {
			long start = getNanoTime();
			if (deadlineNs != FOREVER_NS
				&& !mRecyclerPool.willCreateInTime(type, start, deadlineNs)) {
				// abort - we have a deadline we can't meet
				return null;
			}
			holder = mAdapter.createViewHolder(RecyclerView.this, type);
			if (ALLOW_THREAD_GAP_WORK) {
				// only bother finding nested RV if prefetching
				RecyclerView innerView = findNestedRecyclerView(holder.itemView);
				if (innerView != null) {
					holder.mNestedRecyclerView = new WeakReference<>(innerView);
				}
			}

			long end = getNanoTime();
			mRecyclerPool.factorInCreateTime(type, end - start);
			if (DEBUG) {
				Log.d(TAG, "tryGetViewHolderForPositionByDeadline created new ViewHolder");
			}
		}
	}

	// This is very ugly but the only place we can grab this information
	// before the View is rebound and returned to the LayoutManager for post layout ops.
	// We don't need this in pre-layout since the VH is not updated by the LM.
	if (fromScrapOrHiddenOrCache && !mState.isPreLayout() && holder
		.hasAnyOfTheFlags(ViewHolder.FLAG_BOUNCED_FROM_HIDDEN_LIST)) {
		holder.setFlags(0, ViewHolder.FLAG_BOUNCED_FROM_HIDDEN_LIST);
		if (mState.mRunSimpleAnimations) {
			int changeFlags = ItemAnimator
			.buildAdapterChangeFlagsForAnimations(holder);
			changeFlags |= ItemAnimator.FLAG_APPEARED_IN_PRE_LAYOUT;
			final ItemHolderInfo info = mItemAnimator.recordPreLayoutInformation(mState,
																				 holder, changeFlags, holder.getUnmodifiedPayloads());
			recordAnimationInfoIfBouncedHiddenView(holder, info);
		}
	}

	boolean bound = false;
	if (mState.isPreLayout() && holder.isBound()) {
		// do not update unless we absolutely have to.
		holder.mPreLayoutPosition = position;
	} else if (!holder.isBound() || holder.needsUpdate() || holder.isInvalid()) {
		if (DEBUG && holder.isRemoved()) {
			throw new IllegalStateException("Removed holder should be bound and it should"
											+ " come here only in pre-layout. Holder: " + holder
											+ exceptionLabel());
		}
		final int offsetPosition = mAdapterHelper.findPositionOffset(position);
		bound = tryBindViewHolderByDeadline(holder, offsetPosition, position, deadlineNs);
	}

	final ViewGroup.LayoutParams lp = holder.itemView.getLayoutParams();
	final LayoutParams rvLayoutParams;
	if (lp == null) {
		rvLayoutParams = (LayoutParams) generateDefaultLayoutParams();
		holder.itemView.setLayoutParams(rvLayoutParams);
	} else if (!checkLayoutParams(lp)) {
		rvLayoutParams = (LayoutParams) generateLayoutParams(lp);
		holder.itemView.setLayoutParams(rvLayoutParams);
	} else {
		rvLayoutParams = (LayoutParams) lp;
	}
	rvLayoutParams.mViewHolder = holder;
	rvLayoutParams.mPendingInvalidate = fromScrapOrHiddenOrCache && bound;
	return holder;
}

非常规缓存: 从 mChangedScrap 中获取 ViewHolder ​

java
if (mState.isPreLayout()) {
	holder = getChangedScrapViewForPosition(position);
	fromScrapOrHiddenOrCache = holder != null;
}

isPreLayout()这个方法只有在有动画时才为 true，默认情况是 false 。

再看看 getChangedScrapViewForPosition()方法：

java
ViewHolder getChangedScrapViewForPosition(int position) {
	// If pre-layout, check the changed scrap for an exact match.
	final int changedScrapSize;
	if (mChangedScrap == null || (changedScrapSize = mChangedScrap.size()) == 0) {
		return null;
	}
	// find by position
	for (int i = 0; i < changedScrapSize; i++) {
		final ViewHolder holder = mChangedScrap.get(i);
		if (!holder.wasReturnedFromScrap() && holder.getLayoutPosition() == position) {
			holder.addFlags(ViewHolder.FLAG_RETURNED_FROM_SCRAP);
			return holder;
		}
	}
	// find by id
	if (mAdapter.hasStableIds()) {
		final int offsetPosition = mAdapterHelper.findPositionOffset(position);
		if (offsetPosition > 0 && offsetPosition < mAdapter.getItemCount()) {
			final long id = mAdapter.getItemId(offsetPosition);
			for (int i = 0; i < changedScrapSize; i++) {
				final ViewHolder holder = mChangedScrap.get(i);
				if (!holder.wasReturnedFromScrap() && holder.getItemId() == id) {
					holder.addFlags(ViewHolder.FLAG_RETURNED_FROM_SCRAP);
					return holder;
				}
			}
		}
	}
	return null;
}

这个方法有两种方式从 mChangedScrap 获取 ViewHolder,只有有动画时，mChangedScrap 才会起作用。

从 mAttachedScrap 和 mCacheViews 中获取 View(通过位置尝试) ​
